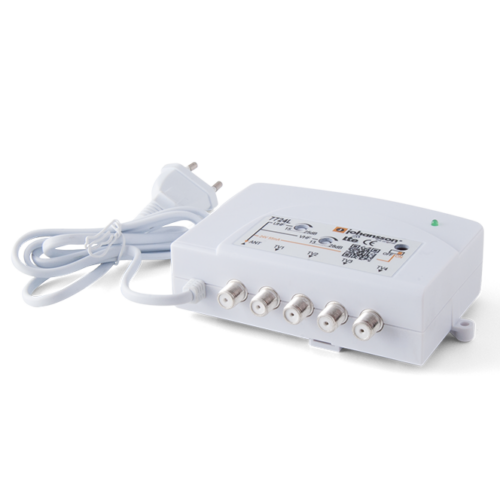

LINE AMPLIFIER FOR TERRESTRIAL 4WAY OUT

  • 1 input: 40-320 MHz + 470-694 MHz
  • 4 outputs
  • Adjustable VHF gain: 13-28 dB
  • Adjustable UHF gain: 15-25 dB
  • 24VDC switchable remote power
  • Power LED indicator
  • Wall and DIN rail mountable
Category:

Description

Frequency range MHz 40-320 + 470-694
Adjustable gain dB VHF: 13-28
UHF: 15-25
Noise figure dB 3.0 typ.
Max. output level dBµV 102
Return loss (input/output) dB 10
Isolation between outputs dB 15
Remote power 24V / 55mA
Input voltage 100-230V / 50-60Hz / 4,8W
Mounting Wall or DIN rail mounting
Dimensions mm 137 x 92 x 42
