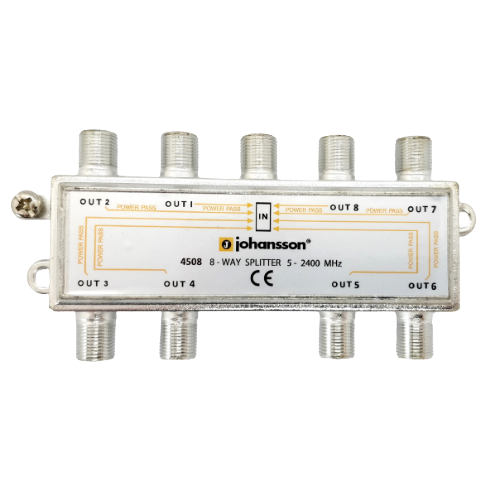

4508 Wideband 8 way splitter

Wideband 8 way splitter / 8 DC / 5-2400 MHz

Wideband Indoor Splitter – Compatible with Wideband LNBs

  • 8-way wideband splitter
  • Low insertion loss
  • Nickel plated zinc diecast housing
  • “F”- type connectors
  • DC power pass on all ports (diode protection)

Description

Splits 8
Frequency MHz 5-2400
Insertion loss @ 5-862MHz dB <13
Insertion loss @ 950-1550MHz dB <14
Insertion loss @ 1551-2150MHz dB <16
Insertion loss @ 2151-2400MHz dB <18
Isolation @ 5-1550MHz dB >25
Isolation @ 1551-2400MHz dB >20
Return loss in/out dB 10
DC power pass (out/in) 8
Dimensions (mm) mm 57x120x19
